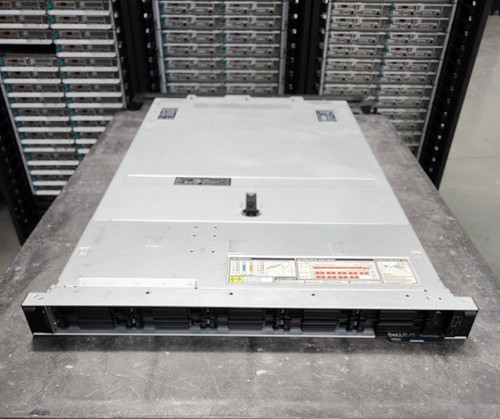

Dell R650
1U rack · 10 × 2.5" bays · 3 low-profile PCIe slots · in stock
Configure this rack server Browse all servers
Dell R650 configurations available
| Configuration |
|---|
| Dell PowerEdge R650 1U 10S LGA3647 |
| Dell Poweredge R650 1U LGA3647 |
| Dell R650 1U 8S LGA3647 |
| Dell Poweredge R650 MM2C6 1U 10S LGA3647 |
| Dell PowerEdge R650 1U 4L LGA3647 |
| Dell R650 1U 8S LGA3647 DMG |
Dell R650 specifications
Dell PowerEdge R650
Processor
- Up to two 3rd Generation Intel Xeon Scalable (LGA4189), up to 40 cores each
Memory
- 32 DDR4 DIMM slots, up to 3200 MT/s, registered ECC only
- 2 TB with RDIMMs, 4 TB with LRDIMMs
- Up to 16 Intel Persistent Memory 200 series slots
Drive bays
- Front: up to 10 × 2.5" SAS/SATA/NVMe, 8 × 2.5", or up to 4 × 3.5" SAS/SATA
- Rear: up to 2 × 2.5" SAS/SATA/NVMe
Storage controllers
- Internal: PERC H745, H755, H755N, H345, HBA355i, S150
- Boot: BOSS-S2 with 2 × M.2 240 GB or 480 GB
- External: PERC H840, HBA355e
Expansion slots
- Up to 3 × PCIe Gen4 low profile (x16, one x8 when SNAP I/O is used)
- or 2 × PCIe Gen4 full height
Network
- 2 × 1GbE LOM onboard
- 1 × OCP 3.0 network daughter card (x8 lanes)
Power supply
- Hot-swap redundant: 800 W Platinum, 1100 W Titanium, 1400 W Platinum (AC/240 HVDC)
Management
- iDRAC9 with iDRAC Service Module, iDRAC Direct, Quick Sync 2
- Dedicated iDRAC micro-USB port on the front
Dimensions
- 1U rack chassis; 42.8 mm high, 482 mm wide
- 822.84 mm deep with bezel, 809 mm without
<!-- source: xByte R650 product page; LRDIMM max differs between its own sections, checked 2026-10-15 -->
Dell R650 documentation
Published by the manufacturer. Opens on their site.
Buying a Dell R650 from IT Server Exchange
Every unit is tested before it ships and its condition is stated up front. Build one to your own specification in the configurator — processors, memory, drives, controllers, network cards and rails are matched to this chassis, so the parts offered are the ones that fit — then send the configuration over and we'll quote it.
