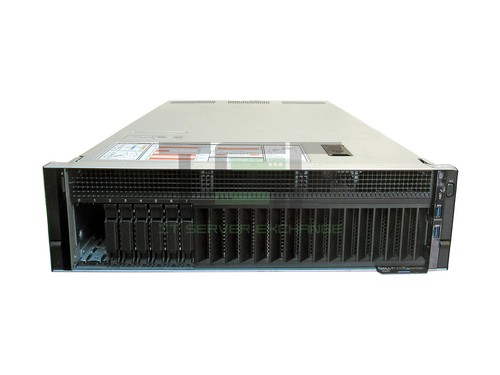

Dell R940
3U rack · 24 × 2.5" bays · 13 full-height PCIe slots · 48 DIMM slots · 4 sockets · in stock
Configure this rack server Browse all servers
Dell R940 configurations available
| Configuration |
|---|
| Dell Poweredge R940 WXNGD 3U 24S LGA3647 |
| Dell PowerEdge R940 WXNGD 3U 8S LGA3647 DMG |
| Dell PowerEdge R940 WXNGD 3U 8S LGA3647 |
Dell R940 specifications
Dell PowerEdge R940
Processor
- Up to four Intel Xeon Scalable processors (LGA3647), up to 28 cores each
Memory
- 48 DDR4 DIMM slots, RDIMM / LRDIMM up to 2933 MT/s, 6 TB max, registered ECC only
- Up to 12 NVDIMMs, 192 GB max
Drive bays
- Up to 24 × 2.5" SAS/SATA, or up to 12 NVMe PCIe SSD, 122 TB max
Storage controllers
- Internal: PERC S140, H330, H740P (the vendor summary also lists H730P), boot-optimized subsystem
- External: PERC H840, 12 Gbps SAS HBA
Expansion slots
- Up to 13 PCIe Gen3 slots (3 × x8, 10 × x16)
Network daughter card
- 4 × 1GbE, 4 × 10GbE, 2 × 10GbE + 2 × 1GbE, or 2 × 25GbE
Power supply
- Platinum 1100 W, 1600 W, 2000 W, 2400 W; 336–380 VDC 1100 W; Gold 48 VDC 1100 W
- Hot-plug with optional full redundancy, eight hot-plug fans
Management
- iDRAC9 with Lifecycle Controller, Express or Enterprise; IPMI 2.0
- Optional Quick Sync 2 wireless module
Dimensions
- 3U rack chassis, 777.05 mm chassis depth
<!-- source: xByte R940 page; controller model differs between its sections, checked 2026-10-15 -->
Buying a Dell R940 from IT Server Exchange
Every unit is tested before it ships and its condition is stated up front. Build one to your own specification in the configurator — processors, memory, drives, controllers, network cards and rails are matched to this chassis, so the parts offered are the ones that fit — then send the configuration over and we'll quote it.
